Industrial · Business · Compliance
Connecting businesses and delivering solutions across Andhra Pradesh, from the first registration to the daily work on your plant floor.
Companies & Service Providers
under one roof
Our core services
Most of our work starts as a custom requirement. Tell us what your site needs and we will put the right team and equipment together.
Whether you need business registration, compliance support, manpower, transportation or industrial services, we deliver practical, reliable solutions tailored to your needs and requirements.
You deal with one manager. We coordinate the people, vehicles, paperwork and contractors behind it.
Why choose us
Complete end-to-end solutions under one roof.
A dedicated manager for clear, seamless communication.
Serving industrial, commercial and business needs.
Services tailored to your business requirements.
On-time delivery with reliable follow-through.
A clear process and competitive pricing, with no hidden costs.
Business services
We take care of the filings so you can focus on running the business. One consultant follows each registration from documents to approval.
Goods & Services Tax
Food safety licence
Labour law compliance
Who we work with
Client proposal · Design & diagrams package
Nellore BPD Plant
Two fixed side rails carry a middle beam that travels forward and back. A motorised hoist trolley runs left and right along that beam, and the chain hoist lifts the load. Together they cover the whole batching floor.

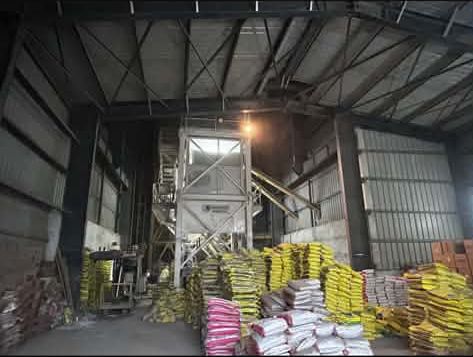

The existing tower stands about 6 m tall with yellow UltraTech bags stacked at ground level. The fixed rails bolt to the existing building columns at 4.5 m height, so the plant keeps running during installation.

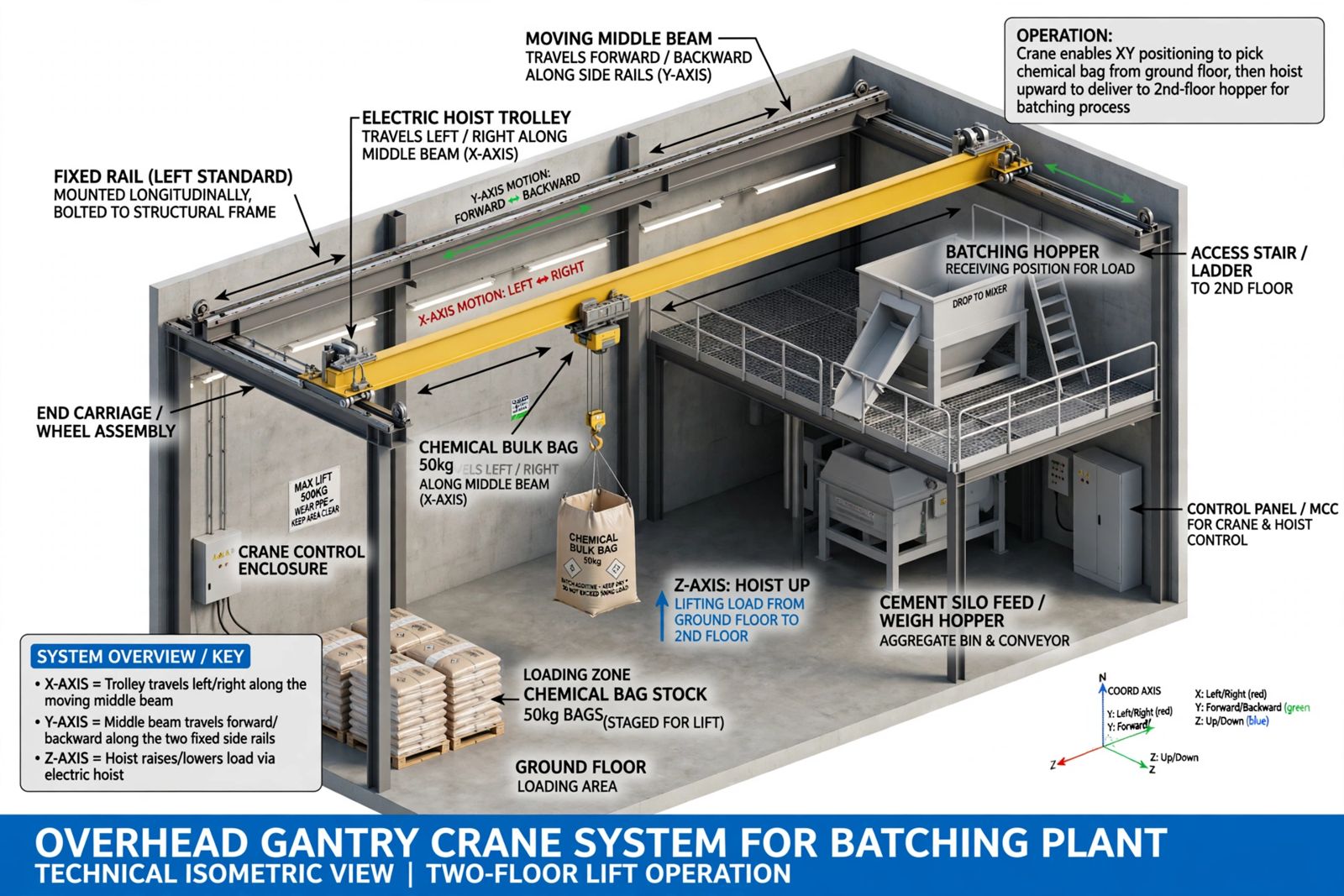

Fixed rails, the moving middle beam and the hoist trolley shown over the batching plant, with the bag loading zone, cement silo and access stair to the second floor.

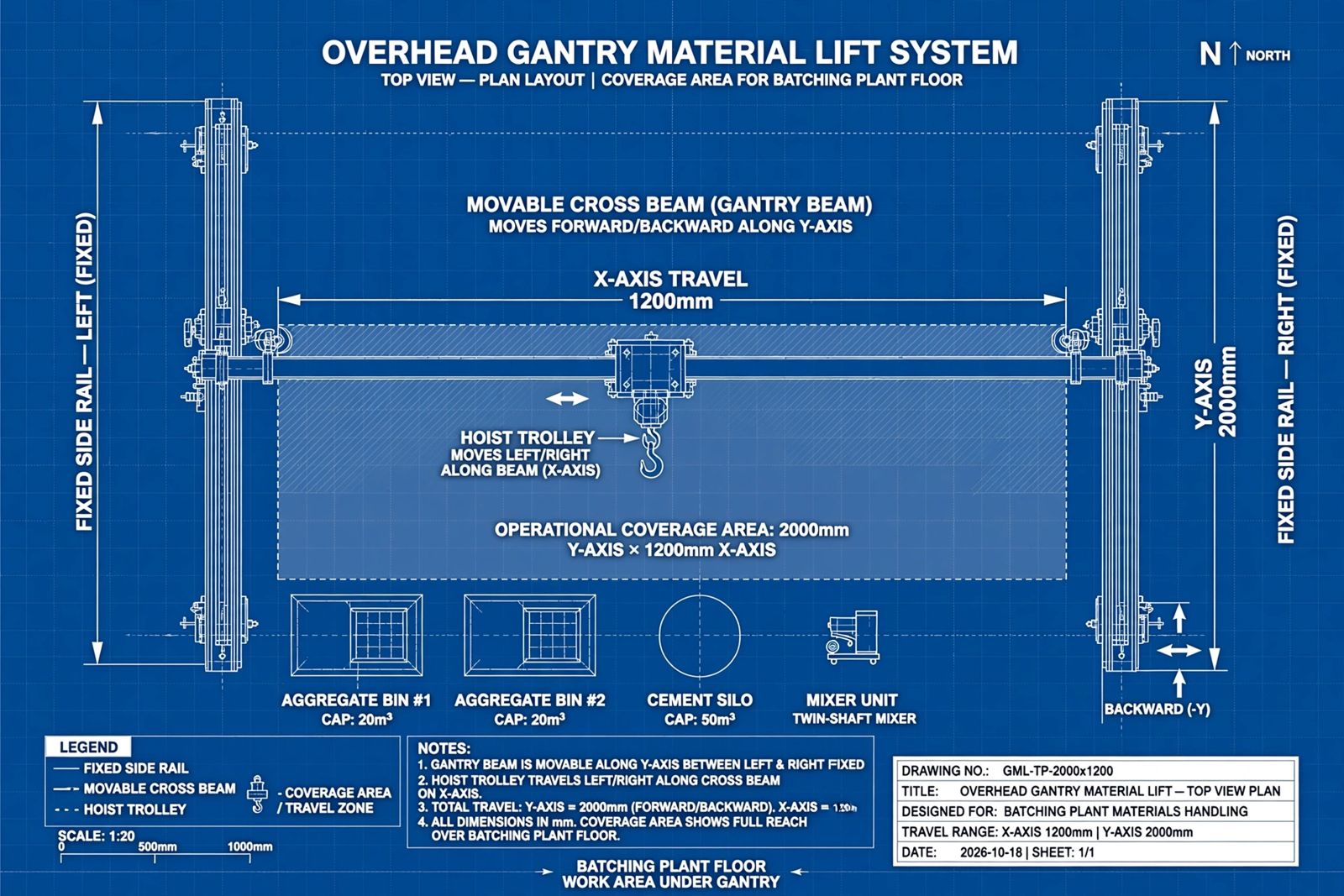

Plan layout of the X-Y coverage area, 2000 mm × 1200 mm, over the aggregate bins, cement silo and mixer unit.
| Parameter | Specification (2T) |
|---|---|
| Capacity (SWL) | 2000 kg |
| Fixed side rails | ISMB 200×100 S355JR, 4 m each. Fixed left and right standards. |
| Middle beam | ISMB 300×140 S355JR, 3 m. Moves forward/backward, Y = 2000 mm. |
| Hoist trolley | 2T motorised trolley, 1.5 kW. Moves left/right, X = 1200 mm. |
| Lifting height | Z = 4000 mm, ground to 2nd floor |
| End carriages | Heavy duty 2T, 4 wheels Ø150 mm, bearings and buffers |
| Hoist | Electric chain hoist 2T, 6 m lift, Grade 80 chain, overload limiter. Indef / Hercules, 415 V 3-phase. |
| Clamp | Dual: 500 kg scissor clamp for chemical bags, plus 2T chain sling for heavy loads |
| Control | Panel with VFD on X and Y, 6-button pendant and wireless remote, emergency stop |
| Safety | 6 limit switches (X1/X2, Y1/Y2, Z up/down), anti-collision, hooter, overload cut-off, SWL 2T signage |
| Power | 415 V 3-phase, 5 kW total |
| Installation | Bolted to existing columns with M20 Hilti anchors. No civil work. |
Design standards
